Aprašymas

• Bendrieji duomenys

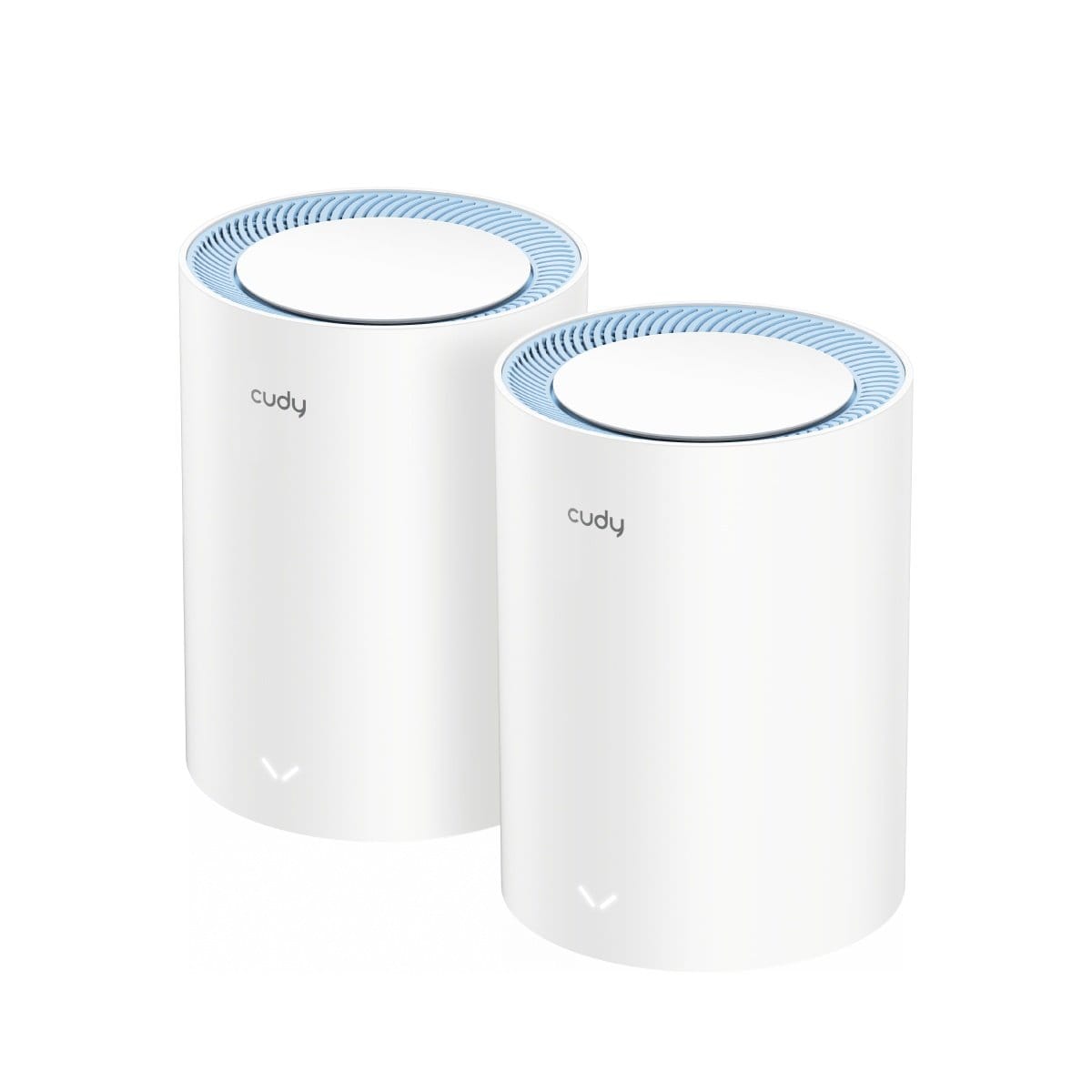

• Modelio versijaM1200 1.0
• CPU mikroschemų rinkinysMT7628
• Procesoriaus informacija580 MHz Single-Core, MIPS24KEC
• Flash/ROM atmintis16 MB (128 Mbit) NOR
• DDR/RAM atmintis128 MB (1 Gbit) DDR3
• 5 GHz Wi-Fi Speed867 Mbps
• 2.4 GHz „Wi-Fi“ greitis300 Mbps
• 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
• 2.4 GHz „Wi-Fi“ srautai2T2R (2×2 MIMO)
• „Wi-Fi“ antenos4× Internal
• 5 GHz antenos stiprinimas max3.75 dBi
• 2.4 GHz antenos stiprinimas max2.35 dBi
• Spindulio formavimasTrue
• Veikimo nuotolisMax: 170 m (558 ft); Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.
• Sienų pralaidumasTwo wooden walls with thickness < 10 cm (4”), One concrete wall with thickness < 20 cm (7”)
• Indoor Coverage Reference2 Pack: 160 m² (1700 sq ft), 3 Pack: 220 m² (2300 sq ft); Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
• 10/100 Mbps RJ45 jungtys2
• Eterneto pastabosPort 1 as default WAN port, both as LAN ports on Mesh satellite units
• LED indikatoriaiSystem
• Fiziniai mygtukaiWPS Button, Reset Button
• Maitinimo įvestisDC Jack
• Maitinimo būdaiDC
• DC12V 1A
• Maitinimo adapterisInput: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 1A DC
• Darbo aplinkaOperating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉); Humidity: 10% ~ 90% non-condensing
• Laikymo aplinkaStorage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉); Storage Humidity: 5% ~ 95% non-condensing
• SertifikataiFCC, CE
• MontavimasDesktop
• MatmenysΦ110×154.5 mm (Φ4.33×6.08 inches)
• Gaminio svoris2-Pack | EU: 586 g (20.67 oz.), 3-Pack | EU: 879 g (31.01 oz.), 1-Pack | EU: 293 g (10.34 oz.)
• Pakuotės turinysM1200, Power Adapter, Ethernet Cable, Installation Guide
