Aprašymas

• Bendra informacija

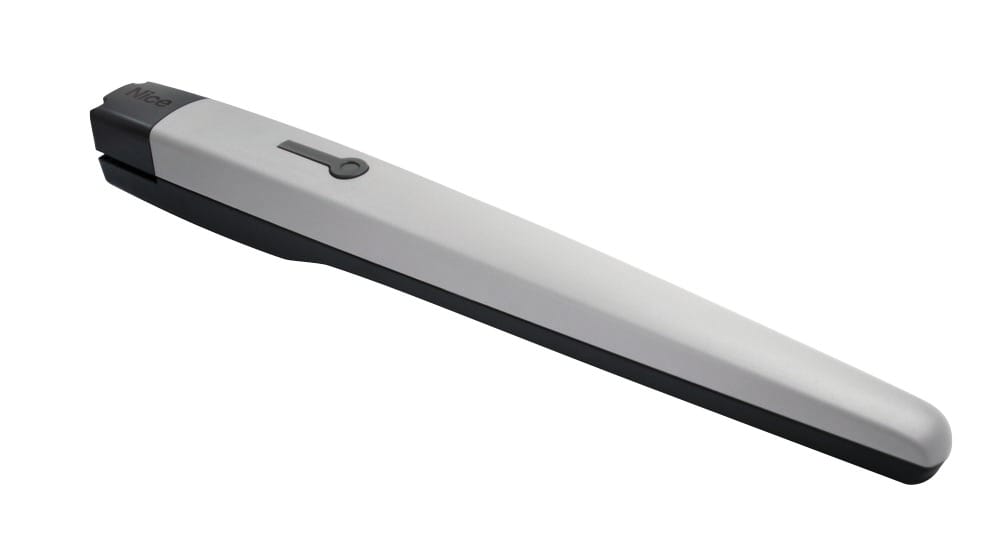

• ModelisTOONA7
• TipasNon-reversible electromechanical gearmotor for swing gates
• PritaikymasDesigned for swing gate leaves up to 7 m in length or up to 1700 kg in weight (depending on configuration)
• Maitinimo šaltinis230 VAC ±10%, 50/60 Hz
• Variklio įtampa24 VDC
• Galia180 W
• Sukimo momentas320 Nm
• Greitis0.013 m/s (adjustable with compatible control units)
• Stroke length620 mm
• Darbo ciklas30 cycles/hour
• Limit switchesElectromechanical (open and closed)
• Apsaugos klasėIP44
• Darbinė temperatūra-20°C to +50°C
• Matmenys (I x P x A)985 x 115 x 105 mm
• SvorisApprox. 7 kg
• Rankinis atleidimasRelease key provided, accessible from top
• MedžiagosAluminium housing with high-resistance corrosion protection
• Control unit compatibilityCompatible with MC824H, MC800, and other Nice control units with BlueBUS or Opera support
• Atsarginė baterijaSupports PS124 (optional)
• Smart system supportOpera, Solemyo, BlueBUS, Yubii, BiDi protocols
• PriedaiCompatible with EPMB/EPSB photocells, ELDC LED light, O-View or Pro-View programmer, MyNice App, and wireless remotes (ERA INTI, ONE, FLOR)
• MontavimasSurface-mounted on post and gate; brackets included
• SertifikataiCE compliant
