Aprašymas

• Bendra informacija
• KodasHO7224

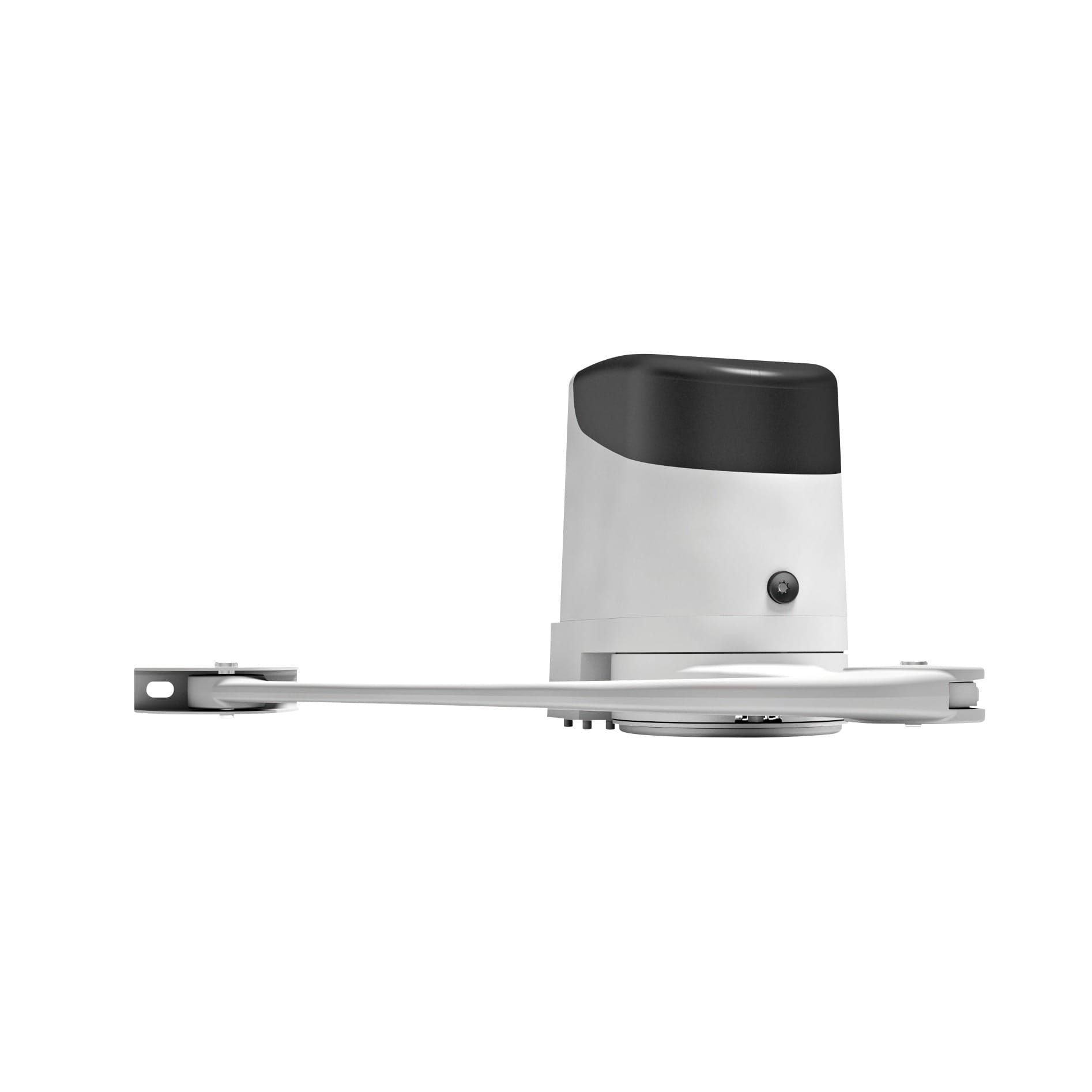

• TipasNon-reversible electromechanical gearmotor for swing gates
• MontavimasSurface mounted
• Maitinimo šaltinis24 VDC
• Energijos suvartojimas100 W
• Srovės suvartojimas4 A
• Greitis1.68 rpm
• Sukimo momentas250 Nm
• Darbo ciklas35 cycles/hour
• Apsaugos klasėIP54
• Darbinė temperatūra-20°C to +50°C
• Matmenys252 x 180 x 290 mm (H x W x D)
• Svoris6.5 kg
• Svirties tipasArticulated, anti-shear aluminium
• KonstrukcijaShockproof body with aluminium base
• Valdymo blokasNot included (unlike HO7124)
• SuderinamumasCompatible with control units and accessories such as PS124 battery, POA3 unit, MYGO4 transmitters, BlueBUS photocells, ELDC LED lights, etc.
• Tinkamumas vartamsFor leaves up to 2.4 m in length and up to 250 kg per leaf
• Papildomos funkcijosSturdy and compact design ideal for large posts; easy installation with quick coupling bracket; supports battery backup via PS124; supports Opera BUS T4, Yubii, and Solemyo systems for advanced programming and remote control
