Aprašymas

• Bendra informacija

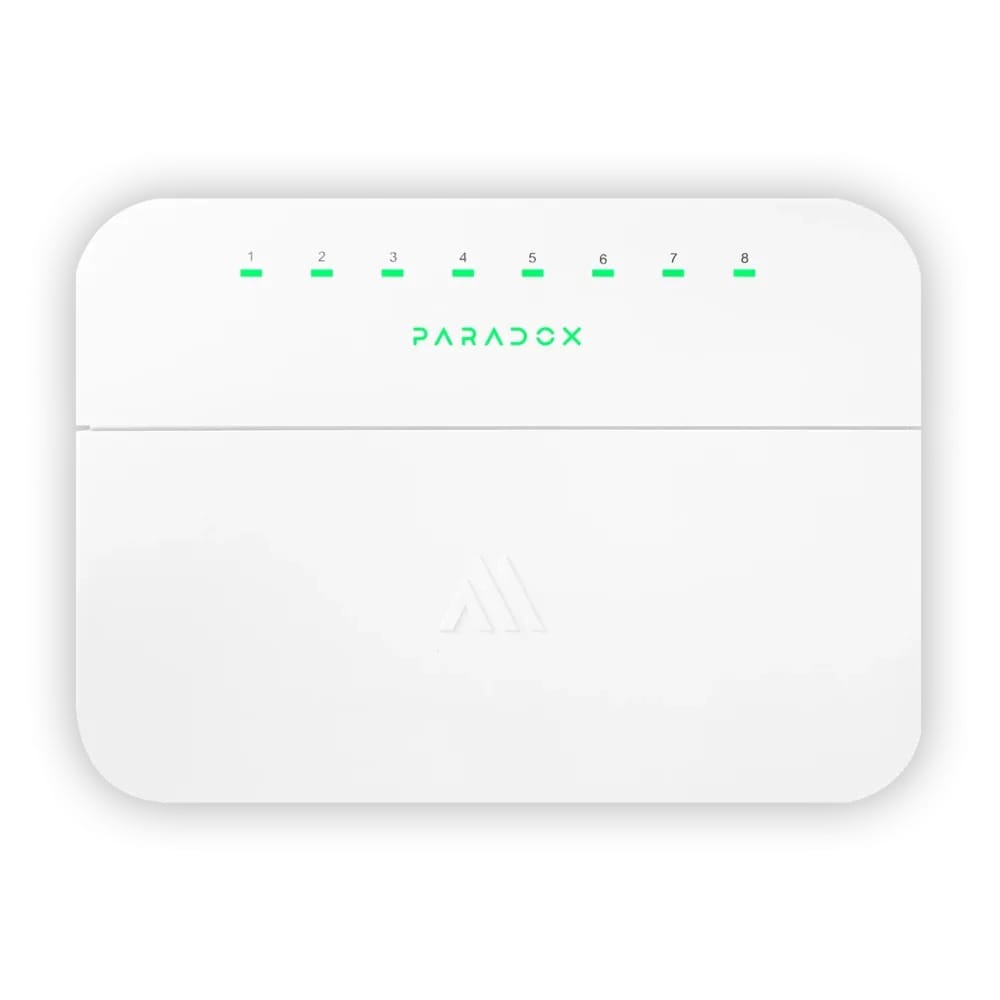

• ModelisPGM8M
• TipasWireless 8-Output Expander
• SuderinamumasParadox M25 centrale (868 MHz)
• Išėjimai8 programmable relay outputs, each up to 24V/1A max (switched)
• Belaidžio ryšio tipasGFSK two-way with frequency and encryption hopping
• RF dažnis868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
• RF galia868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
• ValdymasManual control of each output, status visible in app
• Status IndicatorsApp shows output ON/OFF, tamper, power supply, battery, temperature, TX/RX
• Perdavimo laikas<20 ms
• Priežiūros laikas20 min, 10 min (default), or 3 min
• Maitinimo šaltinis12 VDC input, 1 A
• Baterija1 × 3.7V Li-ion, 5000 mAh (optional, up to 10 days backup)
• Programinės įrangos atnaujinimasRemotely over the air (via BlueEye app)
• Įrengimo aplinkaIndoor
• Darbinė temperatūra–20 °C to +50 °C (–4 °F to 122 °F); charging 0 °C to +40 °C
• Automatinis mokymasisYes
• SpalvaWhite
• Matmenys18W × 13H × 4.5D cm (7.09W × 5.12H × 1.79D in.)
• Svoris0.36 kg (with battery)
• SertifikataiCE, FCC 15.247
