Aprašymas

• Bendra informacija

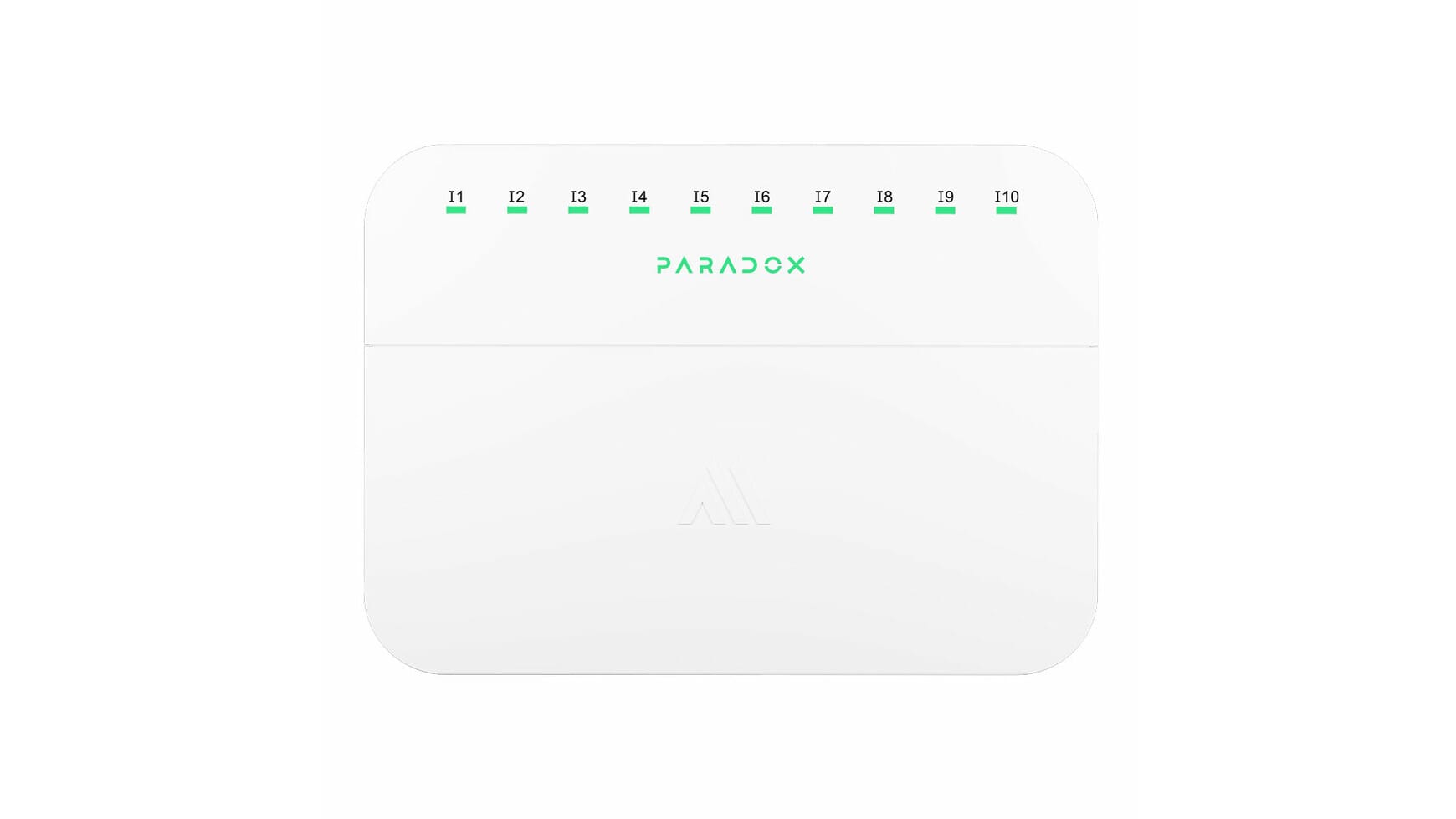

• ModelisZX10M
• TipasWireless Wired Zone Expander
• SuderinamumasParadox M25 centrale (868 MHz)
• Įėjimai10 wired zone inputs (zone 1 can be configured as fire zone)
• Belaidžio ryšio tipasGFSK two-way with frequency and encryption hopping
• RF dažnis868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
• RF galia868 MHz: +14 dBm radiated; 914 MHz: +22 dBm (where permitted)
• Įvesties jungtisSupports no EOL resistor, single EOL (1KΩ), or dual EOL (2 × 1KΩ); zone 1 supports 2-wire smoke
• Auxiliary Power Output12.5–13.8 VDC (12.5 V on battery), max 500 mA; backup 220 mA for 10 h
• Baterija2 × 3.7V Li-ion, 5000 mAh (rechargeable)
• Atsarginė baterijaUp to 10 hours @ 220 mA auxiliary load
• Perdavimo laikas<20 ms
• Priežiūros laikas20 min, 10 min (default), or 3 min
• IndikatoriaiApp shows zone open/close, tamper, power supply, battery, temperature, TX/RX; LEDs for zone status
• Programinės įrangos atnaujinimasRemotely over the air (via BlueEye app)
• Įrengimo aplinkaIndoor
• Darbinė temperatūra–20 °C to +50 °C (–4 °F to +122 °F); charging 0 °C to +40 °C
• Automatinis mokymasisYes
• SpalvaWhite
• Matmenys18W × 13H × 4.5D cm (7.09W × 5.12H × 1.79D in.)
• Svoris0.41 kg
• SertifikataiCE, EN 50131-3, EN 50131-5-3, FCC 15.247
