Aprašymas

• Bendra informacija

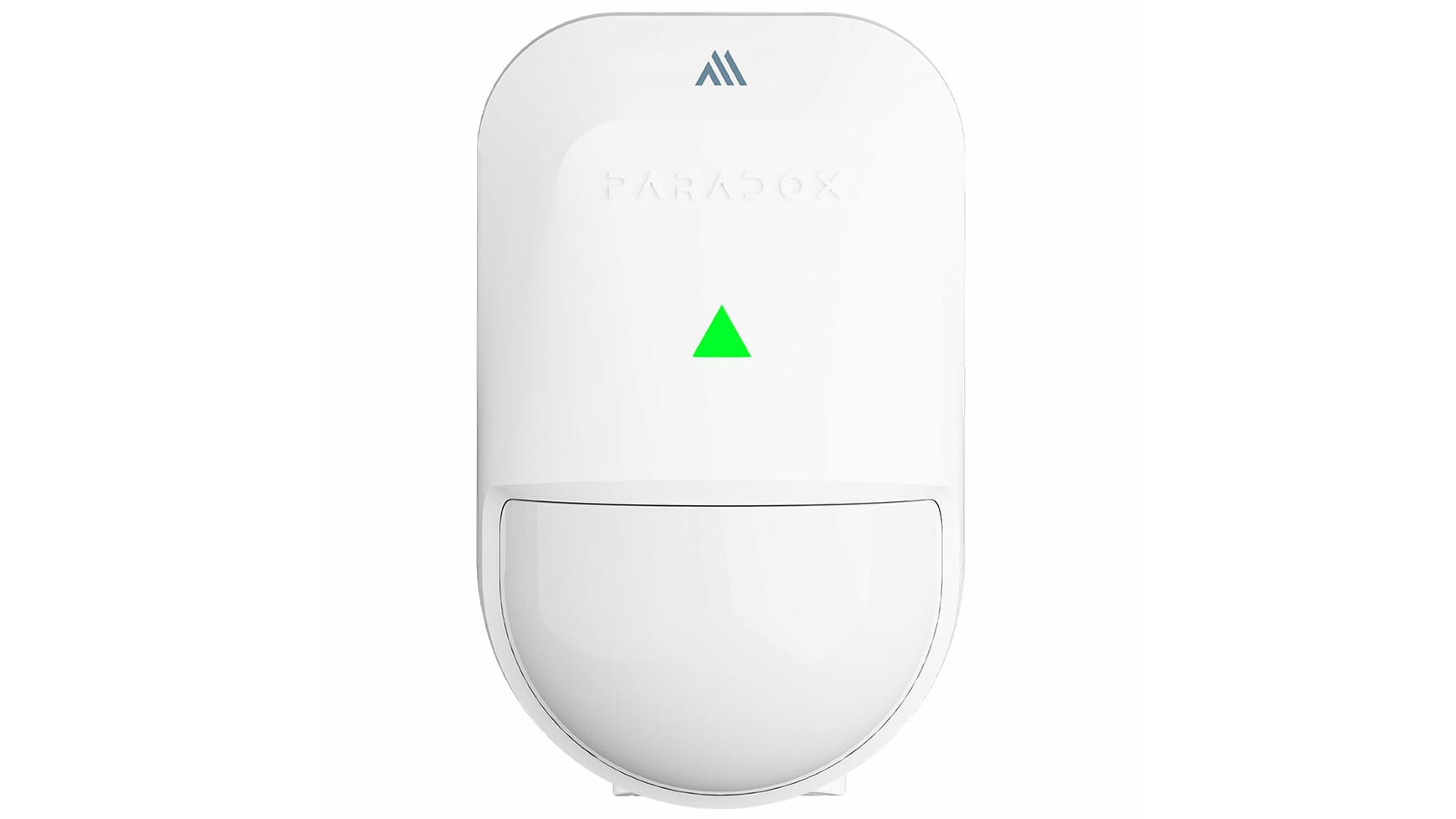

• ModelisPMD5M
• TipasIndoor Miniature Wireless Motion Detector
• SuderinamumasParadox M25 centrale (868 MHz, White)
• Jutiklio tipasDual-element PIR
• Coverage110° – 12 m × 12 m (39 ft × 39 ft)
• Detection Speed0.2 m/s to 3.5 m/s (0.6 ft/s to 11.5 ft/s)
• Belaidžio ryšio tipasGFSK two-way with frequency and encryption hopping
• RF dažnis868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz) – region dependent
• RF galia868 MHz: up to +14 dBm radiated; 914 MHz: up to +22 dBm (where permitted)
• Perdavimo laikas<20 ms
• Priežiūros laikas20 min, 10 min (default), or 3 min
• IndikatoriaiBattery, temperature, TX/RX values (via app)
• Baterija1 × CR123 lithium, up to 6+ years (normal usage)
• Programinės įrangos atnaujinimasRemotely over the air (via BlueEye app)
• Įrengimo aplinkaIndoor
• Darbinė temperatūra–20 °C to +40 °C (–4 °F to 104 °F)
• Automatinis mokymasisYes
• SpalvaWhite (also available in Grey)
• Matmenys5.61W × 9.15H × 1.75D cm (2.2W × 3.6H × 0.7D in.)
• Svoris80 g
• SertifikataiCE, EN 50131-2-2, EN 50131-6, EN 50131-5-3, FCC 15.247
