Aprašymas

• Bendra informacija

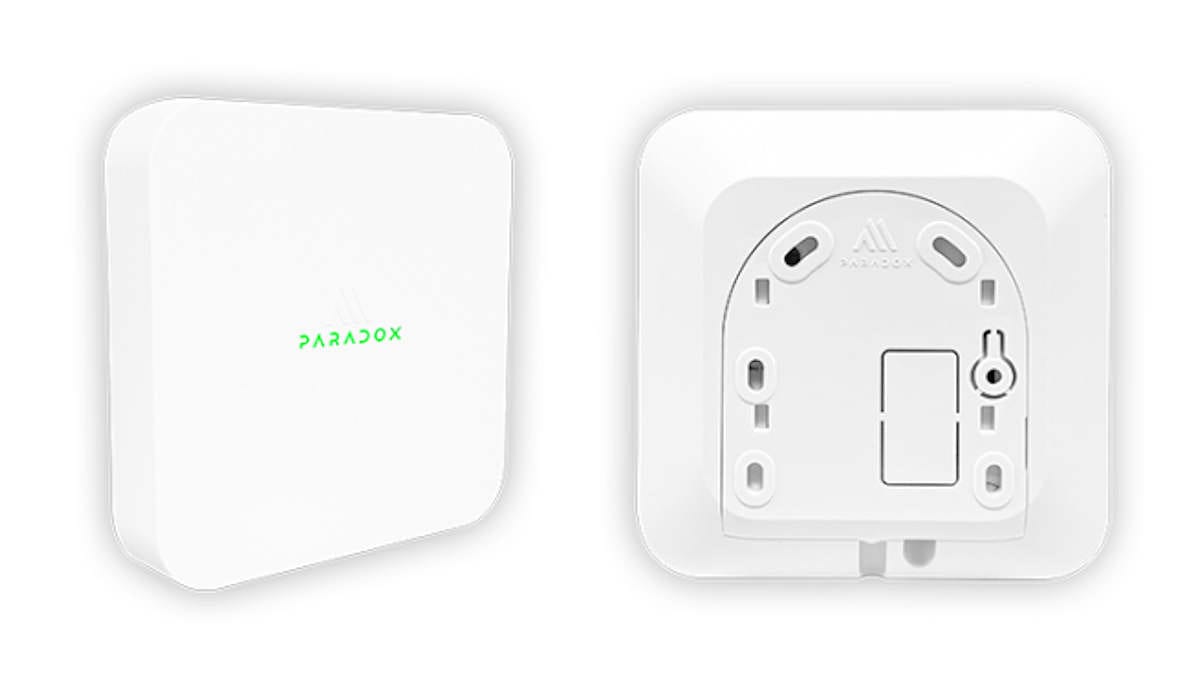

• ModelisM25
• TipasHybrid Wireless/Wired Security Control Panel
• SuderinamumasSupports wireless devices (868 MHz GFSK), wired zones, Ethernet expansions
• Skyriai10
• Zonos100 total
• Vartotojai128 (Owner, Master, User, Maintenance, Guest)
• RemotesUp to 128 (max 4 per user)
• Wireless DevicesUp to 75 per system
• Wireless TechnologyGFSK with encryption and frequency hopping
• RF dažnis868 MHz (865.05–867.95 MHz) or 914 MHz (902.25–927.55 MHz), region dependent
• RF galia868 MHz: +14 dBm; 914 MHz: +22 dBm
• Communication Channels3 – Ethernet, Wi-Fi, LTE (backup)
• LAN/Wi-FiBuilt-in Ethernet (PoE) and 2.4 GHz Wi-Fi (B/G/N)
• PoE palaikymasYes, 10 W max consumption
• LTEOptional (main or backup channel)
• ReportingDirect reporting to CMS, up to 4 converters (Ethernet/Wi-Fi/LTE) without cloud dependency
• ProgrammingBlueEye mobile app or PC software
• Įvykiai1000 security events, 1000 disarmed events, 1000 automation events (soon), 7500 access events (soon)
• IšėjimaiUp to 48 PGMs with expanders; activation via manual, schedule, events, or temperature
• Temperature MonitoringYes, built-in on all wireless devices, with alerts and automation triggers
• Baterija3.7V 5000 mAh lithium-ion (backup: 26h Ethernet, 24h Wi-Fi, 20h LTE)
• InstaliacijaBy registered installer (Paradox Company ID)
• SupervisionFully supervised wireless nodes, auto-learn pairing, QR scan, or serial input
• Matmenys12.4W × 12.4H × 3.55D cm (4.9W × 4.9H × 1.4D in.)
• Svoris0.26 kg
• Darbinė temperatūra–25 °C to +55 °C (–13 °F to 131 °F)
• SertifikataiCE, FCC, EN 50131-1/3/6/10, EN 50136-1/2, EN 50131-5-3, Grade 2, Class II
