Aprašymas

• Bendra

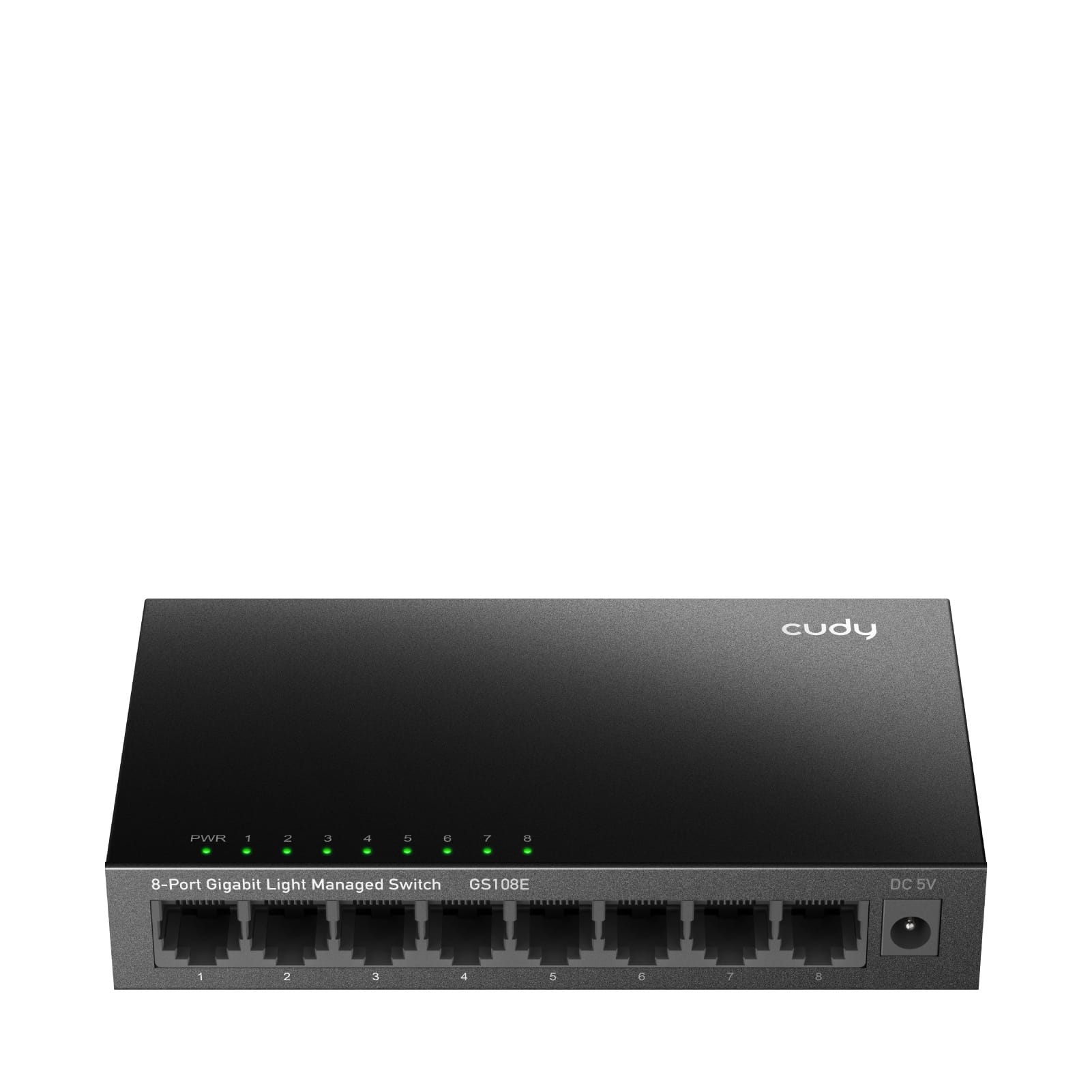

• Modelio versijaGS108E 1.0
• Flash/ROM atmintis8 MB (64 Mbit) NOR
• Gigabit RJ45 Ports8
• LED indikatoriaiPower, Speed/Link/ACT of Each Ethernet Port
• Maitinimo įvestisDC Jack
• Copper Speed and DistanceCat. 3+: 100m @ 10 Mbps, Cat. 5+: 100m @ 100 Mbps, Cat. 5e+: 100m @ Gigabit, Cat. 6+: 150m @ Gigabit
• MAC adresų lentelė8192
• Didžiausia perjungimo talpa16 Gbps
• Didžiausias siuntimo greitis11.904 Mpps
• Jumbo paketas15 KB
• Paketų buferis4 Mbit
• Basic Power SavingTrue
• Maitinimo būdaiDC
• Nuolatinės srovės įvestis5V⎓0.55A
• Maitinimo adapterisInput: 100-240V~, 50/60Hz; Output: 5V⎓0.55A
• Maks. energijos sunaudojimas2.75W
• Budėjimo energijos suvartojimas2.2W
• 802.3 Protocols802.3x Flow Control, 802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3az Power Saving
• 802.1 Protocols802.1d STP, 802.1w RSTP, 802.1p QoS/CoS, 802.1q VLAN Bridge, 802.1ab LLDP/LLDP-MED
• Port ManagementPort On/Off, Port Negotiation Speed, Port Trunk (Static Aggregation), Port Mirror, Data Rate Limit, Jumbo Frame Settings, Storm Control, Traffic Monitor, MAC Address Management, EEE (802.3az)
• Port Trunk Groups4
• Max Ports per Trunk Group8
• L2 FeaturesIGMP Snooping, Loop Prevention, DHCP Snooping, STP/RSTP, LLDP Config & Neighbors, MTU VLAN, Port-Based VLAN, 802.1Q VLAN, Voice VLAN, DSCP QoS, 802.1p QoS, Port-Based QoS
• EMS ProtectionIEC/EN 61000-4-2 Level 2 ESD: Contact: 4kV; Air: 8kV, IEC/EN 61000-4-5 Level 3 Surge: 2kV
• Darbinė temperatūra0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
• Laikymo temperatūra-40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
• Darbinė drėgmė10% ~ 90% non-condensing
• Laikymo drėgmė5% ~ 90% non-condensing
• Control MethodsConfig Web Page, SNMP V1/V2
• Programinės įrangos atnaujinimasLocal Upgrade
• Reliability FeaturesBackup and Restore
• Diagnostic ToolsCable Status/Length Diagnosis, Ping
• Supported LanguagesEnglish, Bengali, German, Spanish, French, Portuguese, Russian, Arabic, Indonesian, Hindi, Urdu, Traditional Chinese, Simplified Chinese
• Matmenys138×78×25 mm (5.43×3.07×0.98 inches)
• Gaminio svoris214.5 g (7.57 oz.)
• Korpuso medžiagaMetal
• Installation OptionsDesktop, Wall-mount
• Pakuotės turinysGS108E, Power Adapter, Installation Guide
