Aprašymas
- Bendrieji duomenys

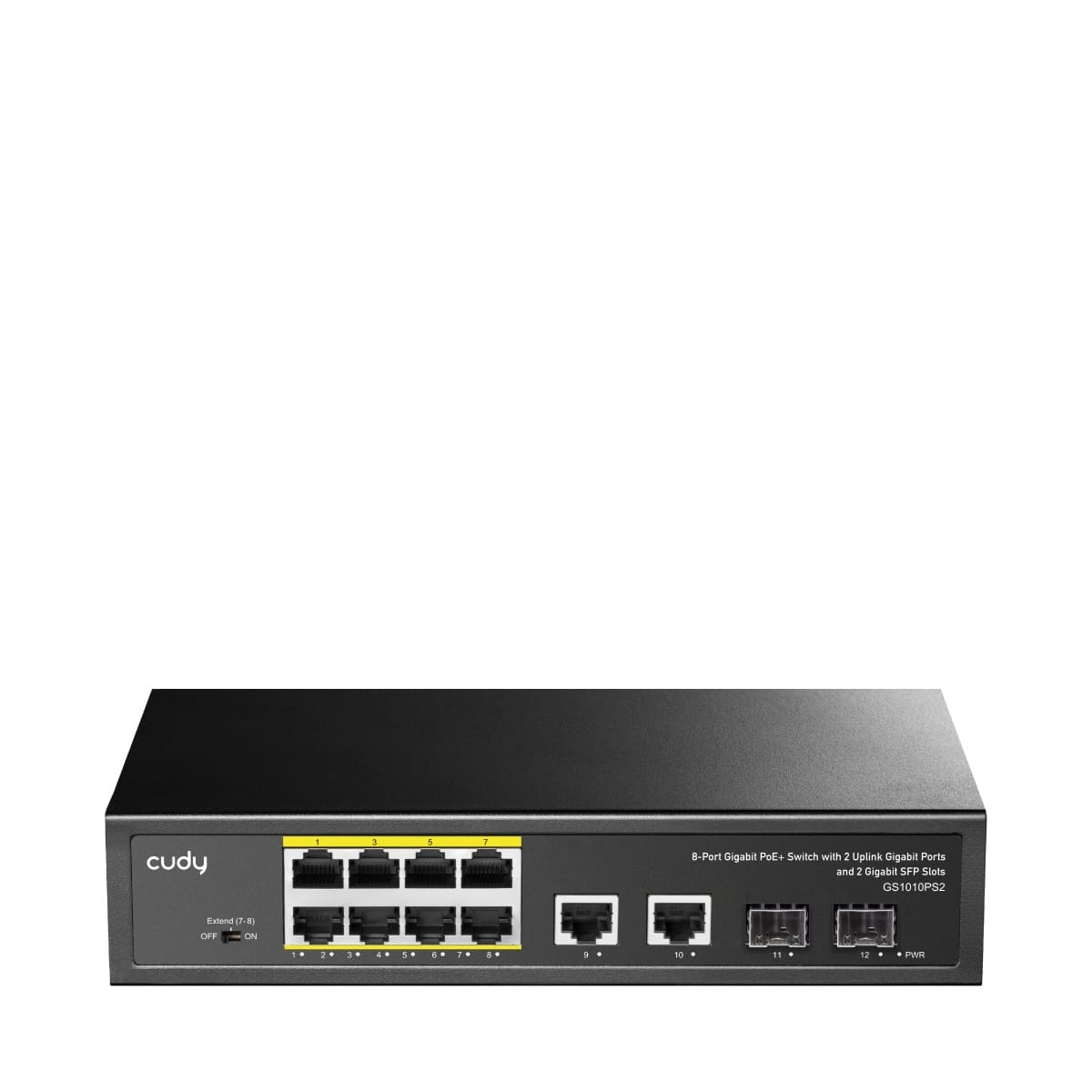

- ModelisGS1010PS2
- Ethernet prievadai8× Gigabit PoE Ethernet Ports, 2× Uplink Gigabit Ethernet Ports, 2× Uplink Gigabit SFP Slots
- PoE StandardsIEEE 802.3af (15.4W), IEEE 802.3at (30W)
- Pralaidumas24 Gbps
- Paketų persiuntimo greitis17.856 Mpps
- Memory Cache448 Kbit
- MAC adresų lentelė2K
- Jumbo kadrų palaikymas2048 bytes
- Transfer ModeStore and forward
- Supported Network ProtocolsIEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3ab (1000Base-TX), IEEE802.3x (Flow control), IEEE 802.3z (Gigabit Ethernet Fiber Standard)
- Industry StandardsEMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
- Network Medium10Base-T: Cat3, 4, 5 UTP (≤100m); 100/1000Base-TX: Cat5 or above UTP (≤100m)
- Optical MediumMultimode: 50/125, 62.5/125, 100/140 µm; Single-mode: 8/125, 8.7/125, 9/125, 10/125 µm
- IndikatoriaiPWR (Power), 1-12 Green Light (Link & Data): On = Normal, Flashing = Transmitting
- DIP Switch – Extend ModeOff: <100m, 10/100/1000M adaptive, watchdog off; On: Ports 7–8 capped at 10 Mbps, 250m range, watchdog active
- Įėjimo įtampaAC 100–240V
- Power Supply Output52V 2.3A (120W)
- Gaminio dydis220×161×44.5 mm
- Package Size315×215×85 mm
- Darbinė temperatūra-10~50°C
- Laikymo temperatūra-40~70°C
- Darbinė drėgmė10%–90%, non-condensing
- Laikymo drėgnumas5%–90%, non-condensing
- Included in PackageSwitch (1x), Power Cord (1x), User Manual (1x)
- Specialios funkcijosUplink GbE and SFP for expansion, Extend mode up to 250 m, PoE watchdog, PoE port priority, fanless metal design
