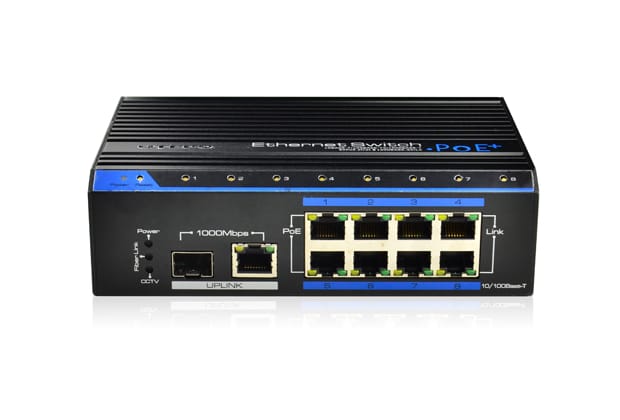

Model | UTP7208E-PoE-A1 |
Downstream Ports | 8* 10/100Base-TX |
Uplink Ports | 1*1000Mbps SFP Port and 1*10/100/1000Base-T |
Network Standard | IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、EEE802.3 X |
Switch Capacity | 5.6Gbps |
Throughput | 4Mpps |
Switch Processing Scheme | Store and Forward |
Memory Buffer | 1M |
MAC Table | 8K |
PoE Standard | 802.3af/at |
PsE Type | End-span |
Power Pin Assignment | 1/2(+)，3/6(-) |
PoE Power Output | 44~57V DC , 30 watts max |
PoE Budge | 150 watts max |
Lightning protection | 6KV Execute：IEC61000-4-5 |
ESD | 6KV Contact discharge 8KV Air discharge Execute：IEC61000-4-2 |
Power Supply | DC 48~57V |
Power Dissipation | ＜6W |
Work temperature | -40℃~75℃ |
Storage temperature | -40℃~85℃ |
Humidity(Non-condensin) | 5%-95% |
Dimension（L×W×H） | 159mm×110mm×46mm |
Weight | 530g |
Regulator | CE、FCC、ROHS |
