Aprašymas

• Bendrieji duomenys

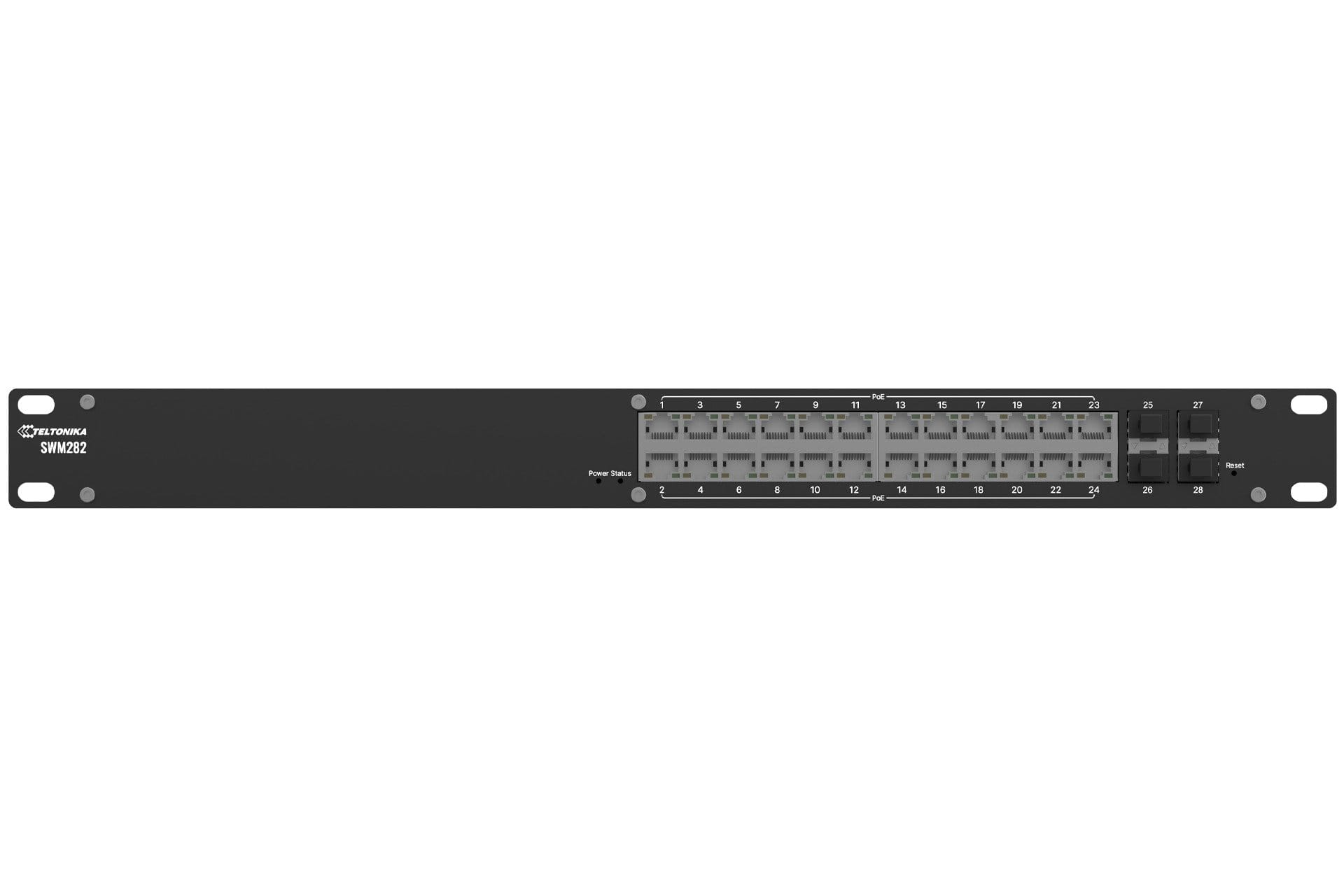

• Produkto pavadinimasTeltonika SWM282
• TipasLayer 2+ Managed Industrial Ethernet Switch
• Ethernet prievadai24 × RJ45, 10/100/1000 Mbps, auto MDI/MDIX
• Fiber ports4 × SFP
• PoE+ supportPorts 1–24, IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W), Alternative A
• Bendra PoE galia300 W
• CPURealtek, single core, 500 MHz, MIPS-4KEc
• RAM128 MB DDR3
• Atmintis16 MB flash
• Operacinė sistemaTSWOS (OpenWrt-based Linux OS)
• NašumasNon-blocking bandwidth 56 Gbps, forwarding rate 83.33 Mpps
• MAC adresų skaičius8,000 entries
• Paketų buferis512 KB
• Jumbo frame palaikymasUp to 10,000 bytes
• Industrial protocolsProfinet Class B (optional), EtherNet/IP, SNMP v2/v3, LLDP
• Network features802.1Q VLAN, 802.1p CoS, 802.1x access control, STP/RSTP, loop protection, DHCP server/client, dynamic routing (BGP, OSPF v2, RIP, EIGRP), static IPv4/IPv6 routing
• QoS featuresPort/DSCP/802.1p/TOS priority, rate limiting, storm control, port-based traffic shaping, scheduling (SP/WFQ/WRR)
• SaugumasPort-based access control, MAC filtering, Radius/TACACS+, IP login block, PAM preshared key authentication
• DiagnosticsCable diagnostic, ping, traceroute, nslookup, PoE reboot on specific port
• APITeltonika Web API (beta) for integration and automation
• Maitinimo įvestisAC 100–240 V, 50/60 Hz (C14 connector)
• Energijos suvartojimasIdle 9 W / Max 330 W / PoE max 300 W
• Korpuso medžiagaAnodized aluminum housing and panels
• Matmenys483 × 44 × 234 mm
• Svoris2.291 kg
• MontavimasRack mounting kit
• Darbo temperatūra0 °C to +50 °C
• Darbo drėgmė10–90% non-condensing
• Ingress protectionIP30
• Būsenos LED indikatoriai1 × Power, 24 × PoE/ETH activity, 4 × SFP, 1 × Status
• SertifikataiCE, UKCA, CB, RCM, FCC, IC
• KomplektacijaSWM282 switch, Quick Start Guide, packaging box (Profinet option available as SWM282000001)
